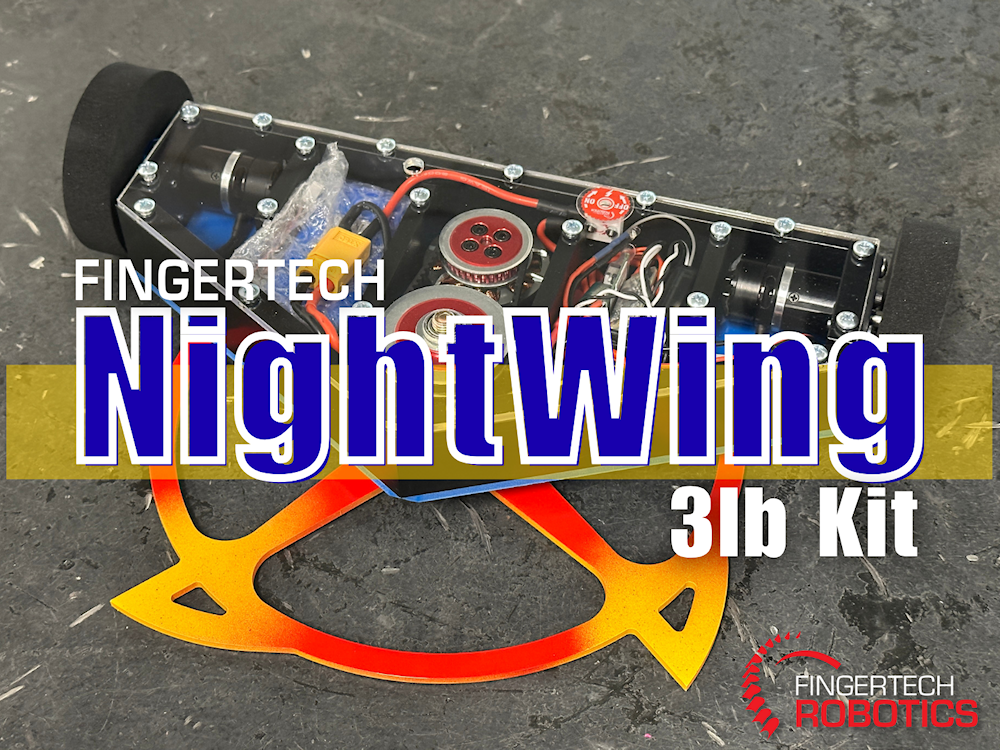

FingerTech NightWing Kit

Price: 743.24 CAD

List Price: 778.03 CAD

526.78 USD 455.67 EUR

In Stock: 8

5 stars, based on 4 review(s)

• Meet NightWing - a true arena legend. With top 3 finishes in 6 of its last 9 events, this fierce competitor has earned the title of “Most Destructive Robot” twice and taken home “Most Entertaining Robot” five times, exciting crowds with every clash. Build your own version of NightWing that delivers the battle-tested performance and show-stopping style that makes NightWing a fan favorite.

• Cutting and drilling not required. Soldering is required. Intermediate kit - recommended ages 12+.

Description
Reviews
Related

• Meet NightWing - a true arena legend. With Top 3 finishes in 6 of its last 9 events, this fierce competitor has earned the title of “Most Destructive Robot” twice and taken home “Most Entertaining Robot” five times, exciting crowds with every clash. Build your own version of NightWing that delivers the battle-tested performance and show-stopping style that makes NightWing a fan favorite.

• No cutting or drilling required!
• This robot does require soldering. Quick connectors are fine in Antweights, but Beetleweights experience forces high enough to pop connectors right off of things. If you are stepping up to the 3lb class, soldering is a highly recommended skill to learn.

Specifications:
• Body Size:
- Width: 30cm (11.8in) outside wheels
- Height: 5cm (2in) from floor to top of body
- Depth: 12.7cm (5in) from rear to front
• Weapon Disc Diameter: 25.4cm (10inches) tip to tip
• Weapon Tip Speed: 240MPH
• Weight: 1330g (2.93lb) with AR500 blade, 1225g (2.70lb) or with Titanium blade

Recommended Tools:
- Use a cordless drill with #2 Phillips bit for the chassis screws. Set the clutch as light as it will go - they do not need to be cranked tight.
- #00 Phillips Screwdriver and Needle Nose Pliers
- Medium strength Threadlocker for all machine screws.
- "Helping Hands" alligator clamping arms for holding wires while soldering

Includes:

Weapon Assembly:	The weapon uses our 3lb Undercutter Assembly with matching 3lb Undercutter Electronics. This weapon system has been refined over years of combat and it has proven itself to be extremely robust without breaking the bank. The 3/4" weapon shaft is contained by a high performance roller bearing that dissipates the impact forces over a large area. A Gr8 Hex Bolt transmits torque and holds the stack together via a threaded bore in the 42T Timing Pulley.
Weapon Electronics:	The weapon is coupled to the F4006 Brushless Motor via a custom 30T Timing Pulley and a 67T Kevlar-reinforced Timing Belt to prevent off-axis shocks from reaching the motor. Power is supplied by a BL40A ESC running AM32 firmware for smooth response and reliably fast spin ups.
Weapon Disc:	The standard weapon included is our 10inch x 0.125 AR500 disc. For even faster spin-up and a greater chance of gliding around the arena with blade vertical (trust us, it's very entertaining!), grab our 10inch x 3mm Titanium disc. Paired with a 3S lipoly battery this weapon will spin up to 8k RPM. That's 240mph tip speed!
Drive Motors:	Our Mega Spark Brushless Gearmotors have an incredibly strong 6mm shaft. Includes 8x M3-0.50x5 Socket Head Screws (4 per motor) for mounting.
Motor Controllers:	2x BL40A AM32 Reversing ESCs translate the radio commands into smooth brushless motor movement, and 1x 5V Regulator powers the receiver.
Motor Mounts:	One pair of Carbon Fibre Mega Spark Mounts are a strong and easy way to securely hold drive motors in the UHMW sidewalls. The necessary screws are included.
Wheels:	One pair of 2.75x0.75" Foam Wheels keep the weapon disc level to the floor and cushion impacts.
Wheel Hubs:	One pair of 6mm x 0.75" Twist Hubs and Twist Hub Key.
Power Switch:	FingerTech Mini Power Switch
Battery Connector:	XT60 male connector
Battery:	3S (11.1V) 1000mAh "Galaxy" lipoly pack.
Wires:	Red 16ga wire for joining the XT60 to the Mini Switch, and creating a small pigtail for the weapon ESC and tinyESCs to join onto. Black 16ga wire for the negative side of things, except no power switch in that line. Includes 20cm lengths of each plus heatshrink.
Screw Pack:	NightWing Screw Pack includes: - 2pcs M2 x 16mm Flat Head Phillips Screws and Nuts for mounting the Mini Switch. - 49x Button Head Thread-Forming Screws #6x1/2" - 4x Button Head Thread-Forming Screws #6x1"
NightWing Frame Parts:	Frame Parts: All parts are CNC machined with every pilot hole pre-drilled. No cutting or finishing required. - 3/8" and 1/4" UHMW Walls and Motor Mounts - 1/4" PLA+ Interior Spacers - 1/8" Polycarbonate Top - 1/8" Garolite Bottom Plate
Safety Clamp:	All spinning weapons require a safety lock.
Instructions:	NightWing-Kit-Instructions_sm.pdf

Optional:

Charger:

If you require a battery charger, the C6D Lipoly Charger is economical and small - great for carrying to events.

Radio:

A radio transmitter and receiver are required. If you don't have them already, we recommend the T6A Radio Transmitter and TR6A receiver (Transmitter requires 8 AA batteries.)
An included Programming Cable can be used to reprogram the functions on the transmitter. FingerTech's radios come programmed for mixed driving on the right stick and weapon throttle on the left (this is most common) but if you prefer tank-style 2-stick driving you will need to reprogram.

Spare Parts:
Looking for backups for an upcoming competition? You can find every part of the NightWing kit here!

NightWing Kit Spare Parts
If the NightWing Kit is out of stock, it might be just because of one or two parts.
You can use the Spare Parts page to get everything and substitute missing parts with others.

4 Product Reviews - Average rating 5 / 5 (Show All)

It spends more time driving on its weapon than it does on its wheels!

James C - 14th October 2025

Even without wheels it still manages to drive around the arena! One thing is for sure: either Nightwing or its opponent is going to be launched out of the arena before the fight is over.

This is a pit clearing robot

Brendan McClure - 16th September 2025

When all the robot builders leave the pits to come to see NightWing fight, you know you're in for a good show!

Have fought against it several times now.

Matthew Smith - 15th September 2025

Nightwing: It somehow manages to keep mobility with no working wheels, I need to have a special attachment for all of my robots to fight it, and I'm sure it's given someone hearing damage when it does its signature dance on the arena floor. I love it, keep bringing it back.

Extremely entertaining

Dennis Beck - 23rd July 2025

I've been fighting against this robot for quite a few years now, and I'm always impressed and amazed at how resilient and reliable it is. It is also extremely entertaining to watch due to the gyro forces from the huge weapon.
