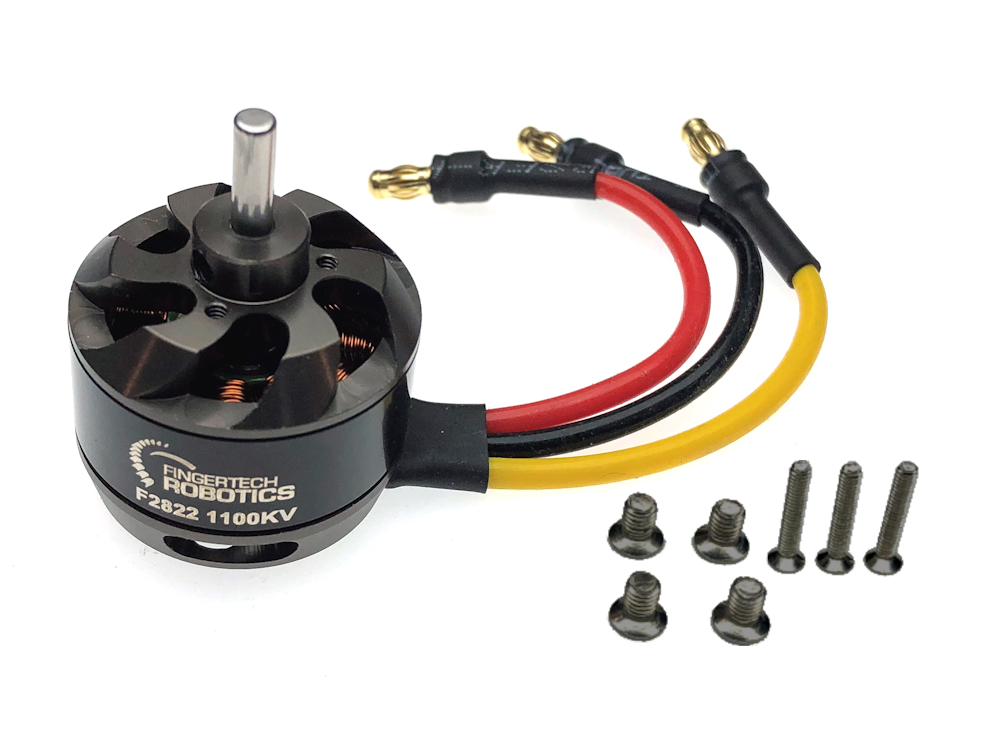

This F2822-1100KV7 Brushless Outrunner with 0.125in shaft was used in the Viper Vertical and Horizontal Spinner Add-Ons (prior to July 2020) and the 1lb Beater Bar Electronics. Its size and power make it ideal for antweight robot weapons, but for added robustness we recommend the F2822-1100KV with 4mm shaft.
Specifications:
KV: 1100rpm/V
RPM @ 2S: 8140rpm
RPM @ 3S: 12,210rpm
Max Voltage: 7.2V-11.1V (2S-3S)
Max Watts: 102W
Max Current: 9.9A
Max Resistance: 0.192Ω
Stall Torque: Notes about Brushless Motor Torque
Weight: 41g (1.44oz)
Motor Diameter: 27.8mm (1.09in)
Motor Length: 21.35mm (0.84in). 25.66mm (1.01in) to end of hub extension.
Wire Length: 56mm (2.2in)
Plug Type: 3.5mm female bullet connectors
Shaft Diameter: 3.17mm (0.125in)
Shaft Length: 10mm (0.39in)
Mounting Holes:
- Two M3.0 spaced 16mm (0.63in), two M3.0 spaced 19mm (0.75in), 90degrees offset. Four M3 x 5mm Phillips screws included.
- The rotating portion of the motor has three M2 screw holes spaced evenly on a 12mm circle. Three M2 x 12mm Phillips screws included.
Wiring: Connect the three ESC wires any way you like. If the motor is spinning backwards, swap any two wires.
