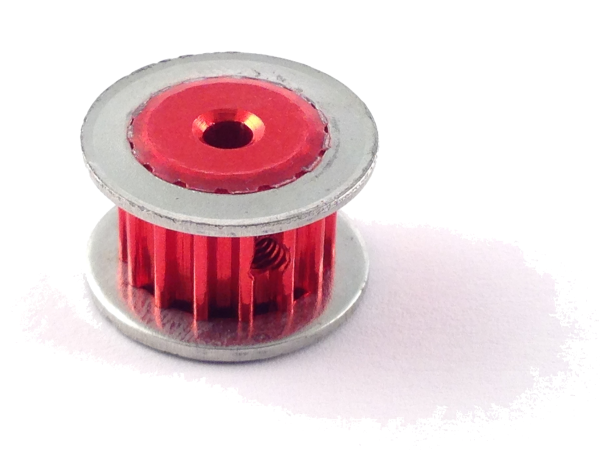

FingerTech S3M Timing Pulley 15T Dual
FingerTech S3M Timing Pulley 15T Dual
  (Enlarge)
  • Description
  • Specifications
  • Specifications
  • CAD Files
  • Reviews
Our specialty Timing Pulleys and Belts are the perfect solution for transmitting power from motors to wheels or shafts.
While O-Rings and round belts will slip under tension, timing belts have teeth that ensure a positive lock to the pulleys.

This double-wide pulley allows TWO belts - one to a front and one to a rear wheel, or two to your weapon for extra strength.  Use with our selection of FingerTech timing belts, or any other 3mm pitch belt (4mm wide or less).
The setscrew is sunken beneath the belt teeth so there is no need for a hub to stick out the side!

Try our Pulley-Belt Distance Calculator!  Pick from our available pulley and belt sizes and it will tell you how far apart they will be, OR plug in your desired distance and it will tell you which belt to use!



Pitch (distance between tooth centers): 3mm
Belt Width (maximum): 8mm
Material: 6061 Aluminum
Size: 15 Teeth
Flange Diameter: 18.2mm (0.72")
Pulley Width: 11.5mm (0.45")
Bore: 3mm (15T can be drilled up to 7.14mm (9/32")
Includes 4-40 setscrew for fastening to shaft.
Make sure your shaft has a flat spot. Make one yourself with a file if you have to!  Setscrews do not hold well on round shafts.
Setscrew is positioned in center of pulley width.
Setscrew requires 0.050" hex wrench

# Teeth Pitch Diameter (for calculating centers) Outside Tooth Diameter Weight
15T 14.32mm (.564") 13.56mm (.534") 5.5g (0.19oz)



Product Reviews

No Reviews For This Product.

Click to review this product


Price: 6.08 CAD
4.60 USD 4.07 EUR
+
-
Add to cart
