NutStrip (old sizes)

Price: 17.12 CAD

12.62 USD 11.03 EUR

Note: These "short" and "full" lengths are being standardized to lengths by hole count (2x1, 4x4, 15x15, and Corner) and can be found here. Good news for you: Clearance sale prices!

• Tired of tapping dozens (or hundreds!) of holes to hold your robot together? Grab yourself some FingerTech NutStrip and save your taps!
• NutStrip is the ideal way to fasten panels together at right angles.
• Made from 6061-T6 anodized aircraft aluminum
• Four fastener sizes to suit bots from fleaweights up to heavyweights!
• Available in three configurations: Short (4x4 holes), Full Length, and Corners with 2x1 holes plus an end-tapped hole.

Quantity:

Description
Old Sizes Specifications
CAD Files
Reviews

Note: These "short" and "full" lengths are being standardized to lengths by hole count (2x1, 4x4, 15x15, and Corner) and can be found here. Good news for you: Clearance sale prices!

Tired of tapping dozens (or hundreds!) of holes to hold your robot together? Grab yourself some FingerTech NutStrip and save your taps!

- NutStrip is the ideal way to fasten panels together at right angles.
- Four fastener sizes to suit bots from fleaweights up to heavyweights!
- Made from 6061-T6 anodized aircraft aluminum.
- Available in three configurations: Short (4x4 holes), Full Length, and Corners with 2x1 holes plus an end-tapped hole.

Check out Big Blue Saw's blog on using NutStrip! They are a great resource for your waterjet and lasercutting needs.
Servo Magazine Review: Servo-2011-12-Nutstrip.pdf

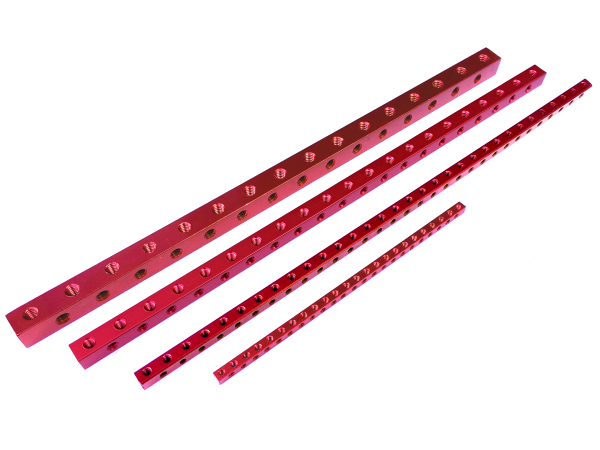

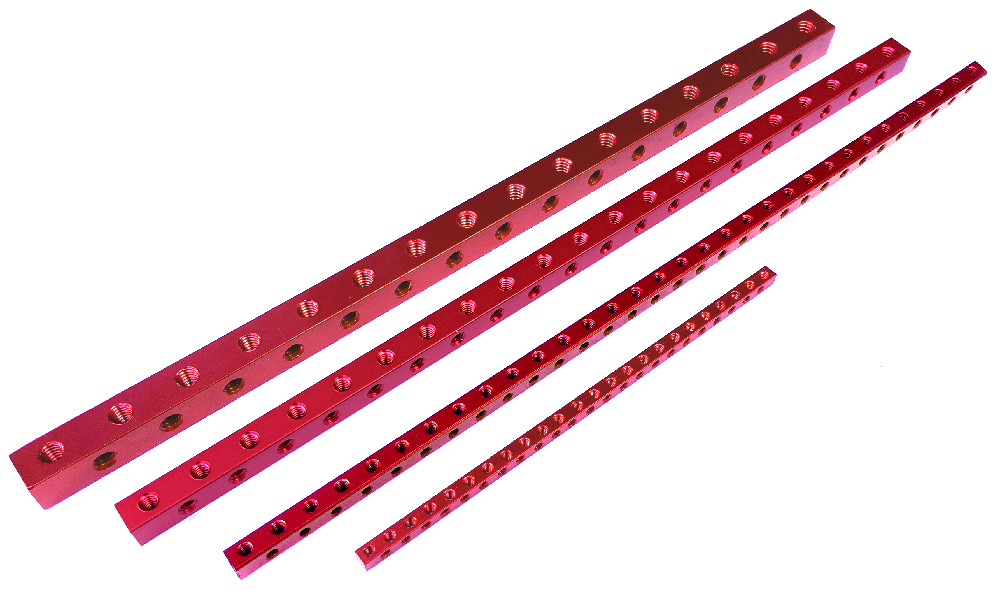

Full length:

Size	Dimensions (+-0.2mm)	Threaded holes	Weight
Micro	4.76mm (0.188in) square 11.11cm (6in) long	47x 4-40 threaded holes spaced 6.35mm (0.250in) apart	6g (0.21oz)
Mini	6.35mm (0.25in) square 30.48cm (12in) long	63x 6-32 threaded holes spaced 9.53mm (0.375in) apart	25g (0.88oz)
Medium	9.53mm (0.375in) square 30.48cm (12in) long	41x 10-24 threaded holes spaced 14.5mm (0.571in) apart	58g (2.04oz)
Large	12.7mm (0.500in) square 30.48cm (12in) long	31x 1/4-20 threaded holes spaced 19.05mm (0.75in) apart	105g (3.70oz)

Short length:

Size	Dimensions (+-0.2mm)	Threaded holes	Weight
Micro	4.76mm (0.188in) square 2.86cm (1.125in) long	8x 4-40 threaded holes spaced 6.35mm (0.250in) apart	1.12g (0.04oz)
Mini	6.35mm (0.250in) square 4.29cm (1.688in) long	8x 6-32 threaded holes spaced 9.53mm (0.375in) apart	3.52g (0.12oz)
Medium	9.53mm (0.375in) square 6.57cm (2.585in) long	8x 10-24 threaded holes spaced 14.5mm (0.571in) apart	12.50g (0.44oz)
Large	12.7mm (0.500in) square 8.57cm (3.375in) long	8x 1/4-20 threaded holes spaced 19.05mm (0.75in) apart	29.53g (1.04oz)

Corner length:

Size	Dimensions (+-0.2mm)	Threaded holes	Weight
Micro	4.76mm (0.188in) square 1.59cm (0.625in) long	3x 4-40 threaded holes spaced 6.35mm (0.250in) apart plus 1 on end	0.67g (0.02oz)
Mini	6.35mm (0.250in) square 2.38cm (0.937in) long	3x 6-32 threaded holes spaced 9.53mm (0.375in) apart plus 1 on end	1.97g (0.07oz)
Medium	9.53mm (0.375in) square 3.67cm (1.443in) long	3x 10-24 threaded holes spaced 14.5mm (0.571in) apart plus 1 on end	7.25g (0.26oz)
Large	12.7mm (0.500in) square 4.76cm (1.875in) long	3x 1/4-20 threaded holes spaced 19.05mm (0.75in) apart plus 1 on end	16.73g (0.59oz)

Drawings:
NutStrip-all-sizes-short.pdf
Micro_NutStrip_corner_R1.pdf
Mini_NutStrip_corner_R1.pdf
Medium_NutStrip_corner_R1.pdf
Large_NutStrip_corner_R1.pdf

Micro_NutStrip_short.IGS
Mini_NutStrip_short.IGS
Medium_NutStrip_short.IGS
Large_NutStrip_short.IGS

Micro_NutStrip_corner.IGS
Mini_NutStrip_corner.IGS
Medium_NutStrip_corner.IGS
Large_NutStrip_corner.IGS
