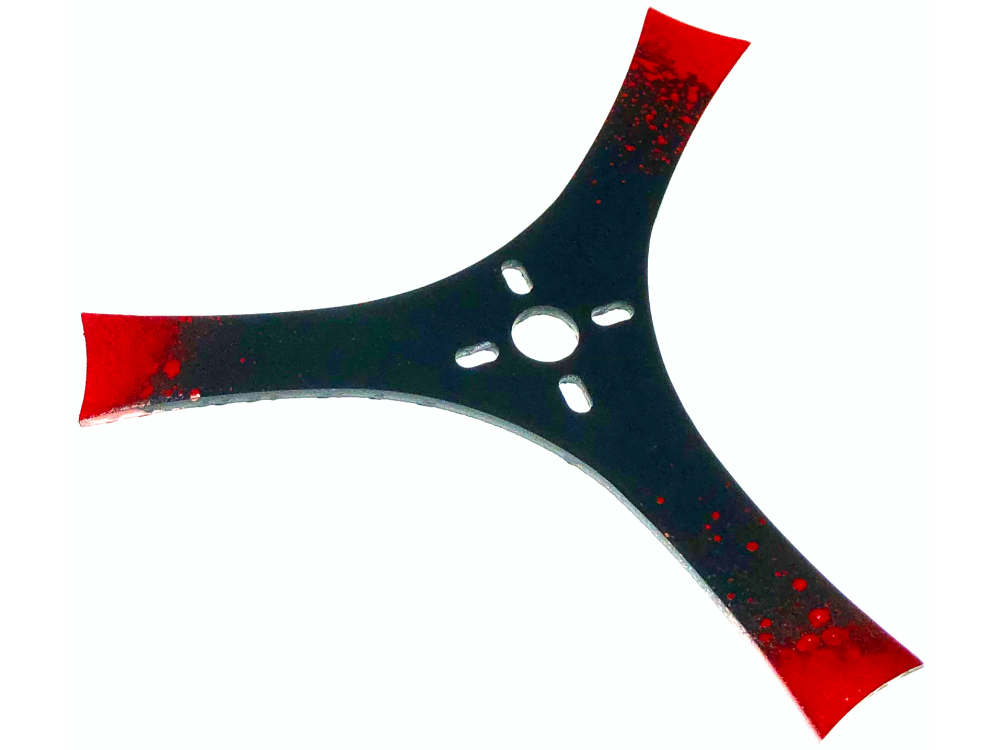

FingerTech 5.5inch Bloodsport Tribar

Price: 37.84 CAD

27.69 USD 25.77 EUR

In Stock: 18

• 2019 BattleBots™ competitor Bloodsport was sponsored by FingerTech Robotics and boasts an iconic horizontal weapon. After receiving requests from fans to supply insect-sized weapon bars, Team BNS turned to us for antweight-scaled versions!
• Own your very own Special Edition Bloodsport Tribar, laser cut from 3.3mm (0.13in) AR500 steel.
• Diameter of 13.97cm (5.5in) tip-to-tip, fits perfectly onto our FingerTech Blade Hub and Blade Mount.

Description
CAD Files
Reviews

- 2019 BattleBots™ competitor Bloodsport was sponsored by FingerTech Robotics and boasts an iconic horizontal weapon. After receiving requests from fans to supply insect-sized bars, Team BNS turned to us for antweight-scaled versions!

- Did you see Bloodsport this 2020 season?! What a beast! Team BNS expanded their arsenal of blades and have partnered with FingerTech again to make them available to fans and builders who want their bots to sport the look of Bloodsport!

- Along with this Tribar, we also provide their Disc and classic Longbar!

Check out their video series on the design of Bloodsport's Tribar:

- Own your very own Special Edition Bloodsport Tribar, laser cut from 3.3mm (0.13in) AR500 steel. Hand-painted - each blade is unique!
- Diameter of 13.97cm (5.5in) tip-to-tip fits perfectly onto our FingerTech Blade Hub and Blade Mount.

2020 BattleBot™ "Bloodsport"

Bloodsport dishing it out to Chronos

Specifications:
Material: AR500 Abrasion-Resistant Steel
Tooth Diameter: 13.97cm (5.5in)
Blade Thickness: 3.3mm (0.130in)
Bore: 10.0mm (0.394in)
Screw hole pattern: 19.05-25.4mm (0.75-1.0in) between 6-32 screws (matches FingerTech Blade Hub and Blade Mount)
Weight: 80g (2.82oz)

Safety:
- As with anything related to combat robots, it is potentially dangerous to add a spinning weapon to a robot. Never power up the robot outside of a safety enclosure. Always use a safety lock and follow proper activation procedure. Visit our Safety Information page for more information.

We have agreed not to give out CAD files for team blades. For robot designs; the OD, thickness, and weight are all specified.

1 Product Reviews - Average rating 4 / 5 (Show All)

Great, but...

Dylan Magnia - 29th May 2023

This Bloodsport tribal is a pretty great option for a horizontal weapon that won't be at risk of flipping itself after a big hit. I've done extensive testing and hit different materials many times, and not once has my bot flipped over. Sure, the low tooth angles mean there's not a lot of bite, but I'd say that's a fair trade for remaining stable after big hits. However, for me at least, the bar I received doesn't fit the Fingertech Blade hub like it's supposed to and the screws to secure it don't fit throughthe holes in the bar like they should, so I've had to crank the screws throughthe blade and damage thier threads and gring down the blade hub so the blade will fit as grinding AR500 is pain. And in case you're wondering, I purchased this before the listing for the undersized version of this bar even existed, so no, I didn't order the wrong bar. I've also had this same issue with the Bloodsport Long bar.

Over all, this is a great bar to use for a Viper horizontal or just horizontal spinners in general if you want to remain steady. Just be aware you might need to do some work to get it on. [FTR- Dylan, send us an email. Sounds like you got yours before we knew there was a problem.]
