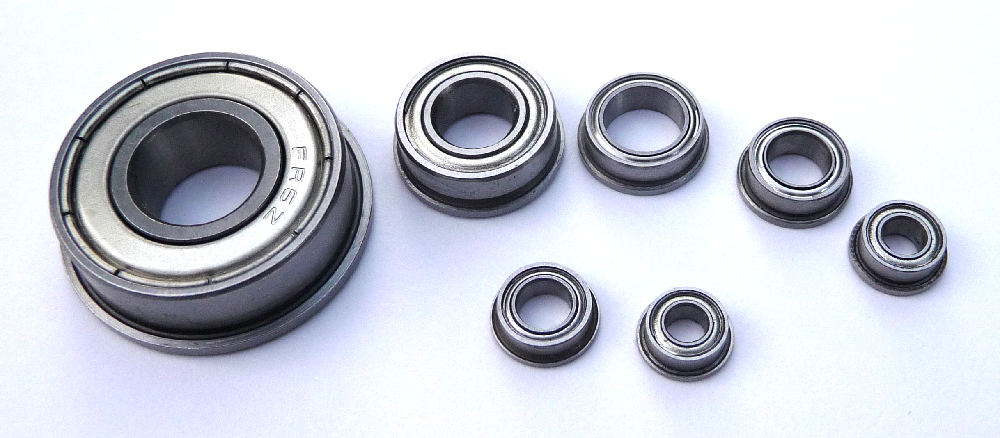

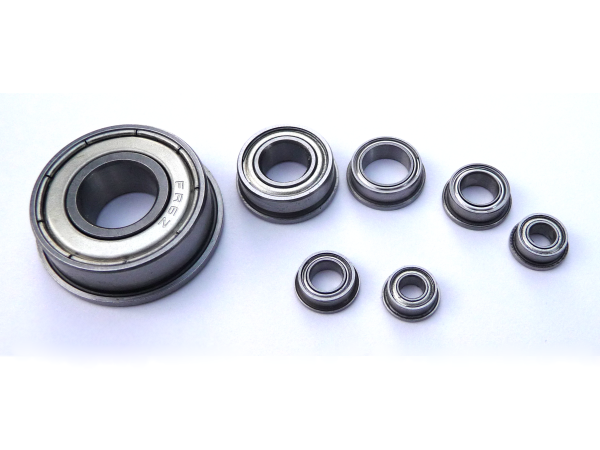

Flanged Ball Bearing
Flanged Ball Bearing
  (Enlarge)
  • Description
  • Reviews
If your robot has to take a lot of abuse - landing hard on the wheels, etc - these deep-groove ball bearings are what you need.

- Perfect for distributing forces into the frame and reducing friction and motor load.
- Use these to support motor shafts, weapon shafts, and other axles with one or two flanged ball bearings.
- A side flange allows fitting into panels without pushing through the hole.
- Available in a variety of metric and US sizes.
- MR63ZZ (non-flanged) is available here as well.  If you need to replace the bearing in your Bearing Block, this is the one to get.

Specifications:
Chrome steel construction, double shielded and oiled for extended life and high RPM.


  Bore Dia (d) Outer Dia (D) Flange Dia (Df) Width (Ws) Flange Width (Wfs) Dynamic Load Rating (Newtons) Static Load Rating (Newtons) Max Speed
(RPM)
Weight
(grams)
 MF63zz 3.00mm 6.00mm 7.20mm 2.50mm 0.60mm 178 59 80k 0.34
 MF74zz
4.00mm 7.00mm 8.20mm 2.50mm 0.60mm 217 86 67k 0.40
 FR144zz 0.1250in 0.2500in 0.2960in 0.1094in 0.031in 54 17 80k 0.48
 FR156zz 0.1875in 0.3125in 0.3590in 0.1250in 0.036in 69 27 63k 0.56
 FR168zz 0.2500in 0.3750in 0.4220in 0.1250in 0.036in 71 31 56k 0.73
 FR188zz 0.2500in 0.5000in 0.5470in 0.1875in 0.045in 344 80 50k 2.54
 FR6zz
0.3750in 0.8750in 0.9650in 0.2812in 0.062in 637 256 38k 12.39



Product Reviews

No Reviews For This Product.

Click to review this product


Price: 3.60 CAD
2.72 USD 2.41 EUR
+
-
