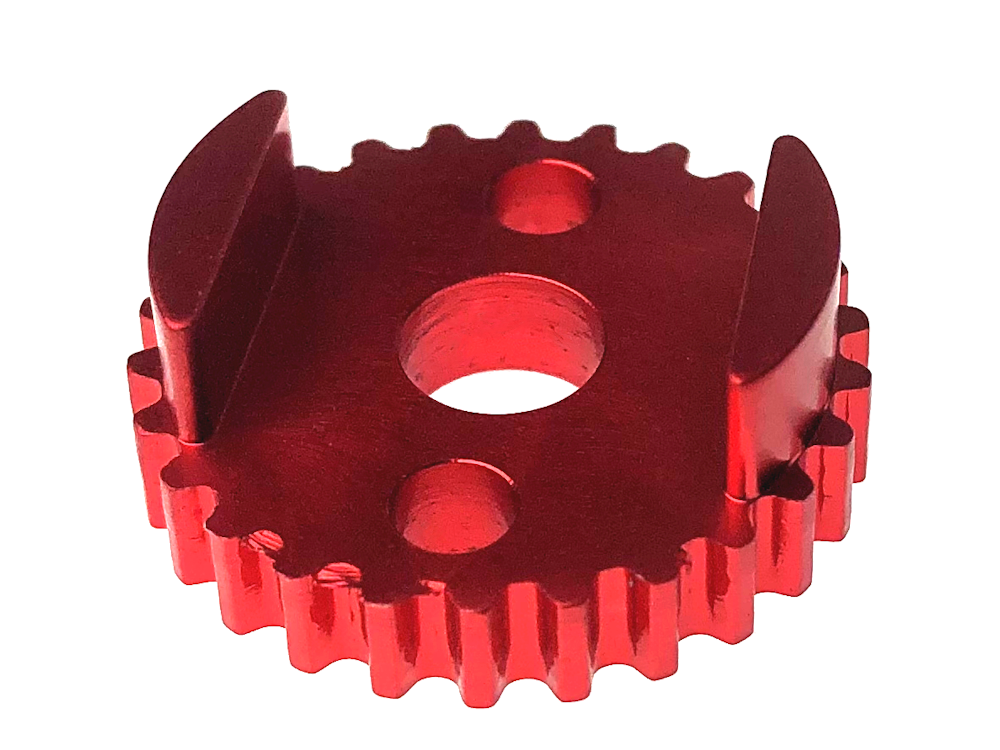

This pulley is specially-made for use with our 1lb Beater Bar.
Use it to replace damaged ones, stock up on spares, or for your own creation!
It can be used with our 4mm wide timing belts.
Uses two custom Delrin Flanges.
Specifications: - 26T 3mm pitch S3M pulley
- Bore: 6.6mm (0.26"), good for 6mm or 0.25in shaft.
- Usable belt width: 4.3mm (0.17in)
- Width: 11.3mm (0.446")
- Outer diameter: 24.04mm (0.95in)
- Two 3.8mm (0.15") mounting holes spaced 15.24mm (0.6") for 6-32 screws
- Two prongs for interfacing with our custom
Delrin Flanges: Prong length: 4.76mm (0.19in). Prong spacing: 16mm (0.63in)
- Material: 6061 aluminum
- Weight: 4.7g (0.17oz)
